Product model: YJRQ4Y

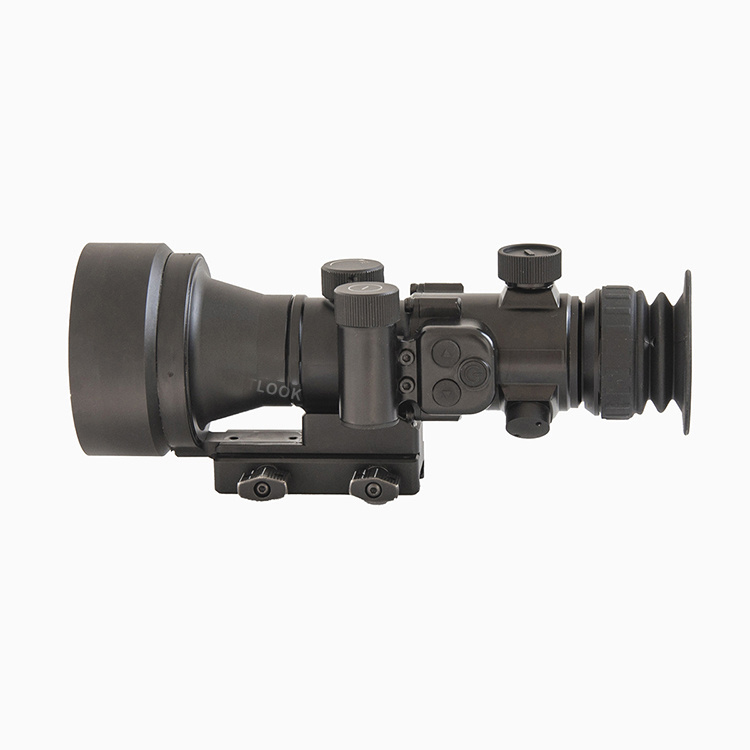

Product Name: Aimer_ Low light night vision_ Monocular_ YJQ4Y_ MILITARY
Night Vision Principle: Low Light
■Product Description
The YJQ4 uses a high-performance ultra-second-generation image intensifier tube, which increases the observation distance and recognition distance to 450–700m. Nighttime sniper operations can be conducted as long as the brightness is at least 0.001 lux. In addition, this scope has an anti-glare function, meaning it can be turned off automatically to protect the image intensifier from overheating when suddenly exposed to bright light, makingit ideal for urban combat.
In addition, it complies with the internationally recognized pickup track system.
■ Features
+ 4x magnification
+ Anti-glare
+ 2 generations plus image intensifier tube
+ Shockproof under heavy recoil (.375 H&H CAL included).
+ Special high light transmission optics
+ Long exit pupil distance
+ Precision Tactical Bias/Elevation Adjustment (1/4 MOA)
+ wide range of rails
+ Waterproof/dustproof
+ Light weight
+ Can be installed on G2, G3, Chinese Type 03, Type 85 7.62mm,
Type 88 5.8mm sniper rifle, and AK-47 and other gun types.
+ Achieved the US military standard FOM > 1250
■Main Parameters
»Magnification: 4.4X
»Field of view: 8.3°
»Diopter adjustment range: -5SD~+4SD
»Parallax: 1.5′
»Reticle Adjustment Range： y:±20mil,x: ±18mil
»Exit pupil diameter: φ7mm
»Eye distance: 30mm
»Focusing range: 15m-∞infinity
»Impact Zero Travel Moment: 0.1mil
»Total weight: 953g
»Dimensions: 202x82x90mm （exclusive eye mask cover）
»Resolution (image tube): 57lp/mm
»Signal to noise ratio (image tube): 25 db
■Video Link_ Filmed by cell phone
Watching the railway at night
https://v.douyin.com/ieWmCXLY/
