Product model: YJRK-1

Product Name: Scope_ YJRK-1_ Thermal Imaging_Night Vision_ 2-eye_ Single goggle

Night Vision Principle: Thermal Imaging

■Introduction

Imported high-performance detectors.

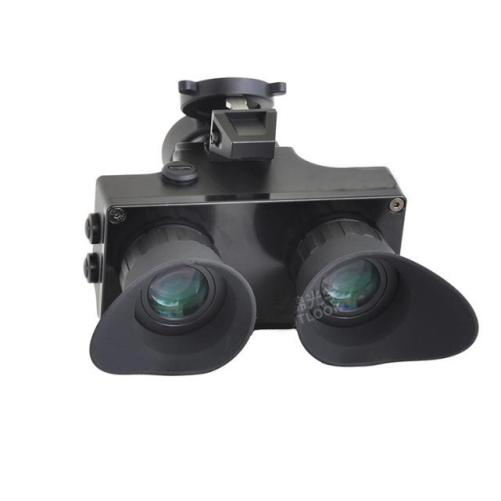

YJRK-1 is a small and lightweight binocular infrared thermal imager with flexible usage, which can be connected to a helmet for use or handheld. The product uses high-performance infrared detectors, which can still provide clearer images in dark environments. Watching with both eyes, even if used for a long time, there will be no feeling of eye fatigue. The product has a wide range of applications and can be used for night outdoor observation, night fishing, forest fire prevention, family safety, night walking and driving, etc. It is an ideal equipment for outdoor night vision.

Second generation graphics enhancer.

■Main Parameters

Resolution: 384x288 vanadium oxide FPA, capable of producing 640 * 480,

Pixel spacing of： 12um,

Spectral range： 8-14um,

Focal length： 19mm@f1.0 ,

Focusing mode：manual

Field of view angle: 13.8 ° x10.4 °,

Thermal sensitivity:< 40mk@f /1. 0,

Frequency: 50Hz, continuous digital doubling (2x, 4x optional),

Image mode :background automatic, foreground automatic, manual/linear

The color mode： is black and hot. White heat. Brown. Red fever. Iron Red. Rainbow

Contrast： 1-100 Brightness 1-100 Sharpness 1-10 Noise Reduction 1-8

Cross hairs in 5 colors, adjustable

Dense differentiation ：Yes,

Start time: less than 3 seconds

Laser pointing： Yes

Battery ：1 * 18650

Working time: ≥ 6 hours

■Detailed Parameters

»Detector data

Resolution:384x288 vanadium oxide FPA

Pixel spacing: 12um

Spectral range: 8-14um

»Lens

Focal length: 19mm@f1.0

Focusing mode: manual

Field of view: 13.8°x10.4°

»system performance

Thermal sensitivity: ＜40mk@f/1. 0

Frequency: 50Hz

Digital zoom: Continuous digital zoom（2x, 4x optional）

Image mode: background automatic, foreground automatic, manual/linear

Color mode: black heat. White Heat. Brown. Red Fever. Iron Red. Rainbow

Contrast: 1-100

Brightness: 1-100

Sharpness: 1-10

Noise reduction: 1-8

Hot track: yes

PIP: Yes

Cross hairs: 5 colors, adjustable

Density-differentiated: Yes, expandable

Start-up time: less than 3 seconds

Image flip: N/A

laser point: Yes

Battery: 18650*1

Work Time:

Software Upgrade: Yes

»Eyepiece

Display: 0. 39-inch 1024x 768 color OLED

Magnification:

Diopter adjustment: －5°~+5°

Exit pupil distance: 25mm

»Environmental Data

Working temperature: －30℃ ~+60℃

Storage temperature: －40℃~+70℃

Waterproof level: IP67

»Dimension

Weight : 473g (exclusive battery)

Dimension（L*W*H) : 125*68*140 mm (Includes lens, eyepiece rubber）

Standard: Host, lens cap, mounting bracket, manual, warranty

Menu in Englsih

■Video link_ Filmed by cell phone

Railway_ Multi color mode::

https://v.douyin.com/ieWmhnmM/

Mounted on helmet:

https://v.douyin.com/ieWmjXae/
