Product model: PVS31-40
Product Name: Scope_ PVS31-40_ Low light_Night Vision_ Binocular_ MILITARY
Night vision principle: low
■Introduction

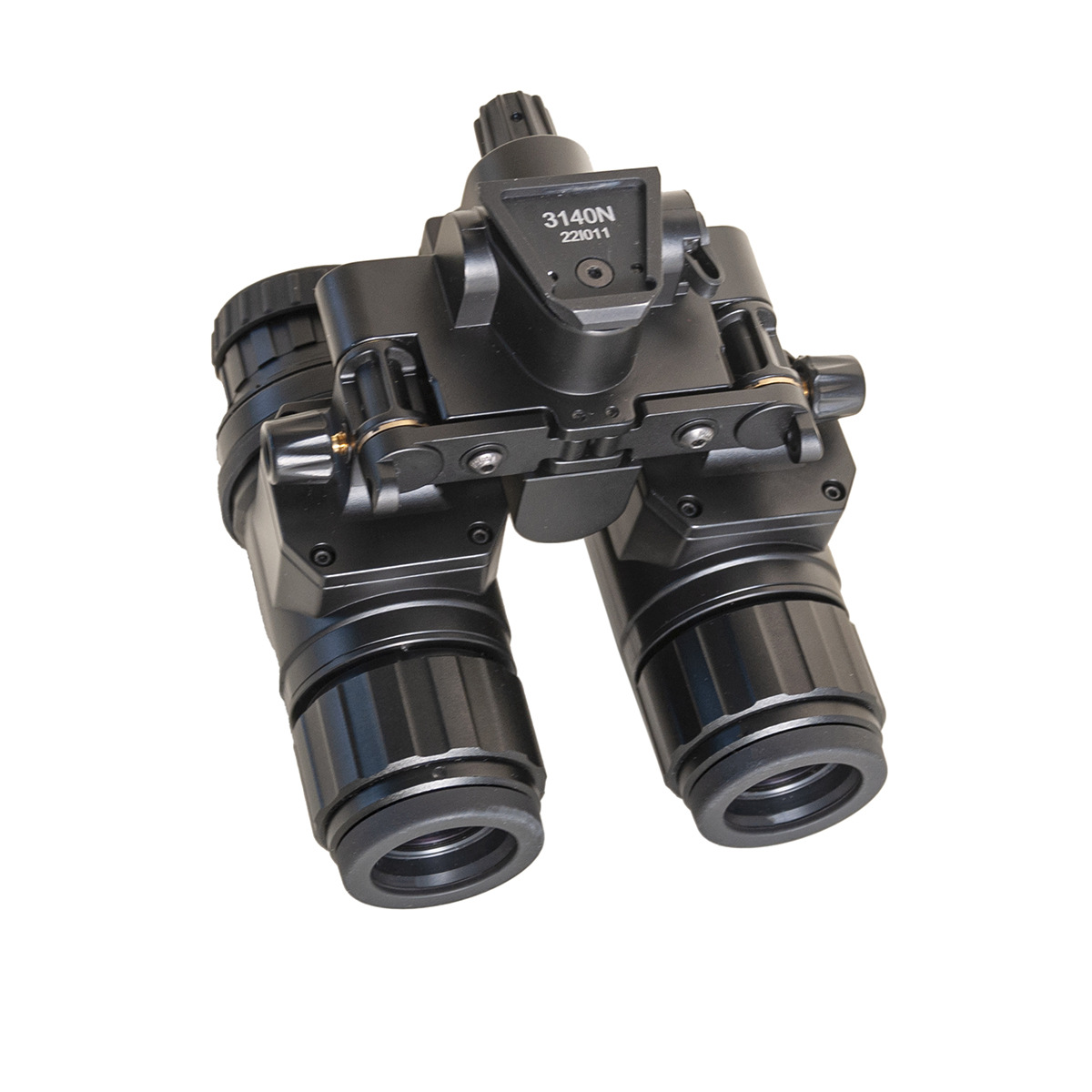

Low light dual tube night vision instrument, can be handheld or helmet mounted, with an optical magnification of 1x (tolerance ± 5%), second-generation image enhancement tube, and a focusing range of 250mm to infinity. The display mode includes black and white imaging with white phosphorus tubes.
■Main Parameters
MODEL:PVS31-40
Structural mode: Flip up design
rollover detection: Automatically detect and power off when flip up
Battery type: Lithium battery (cr123x1) / cr123x4 external battery pack
Power supply: 1.4-4.2V
Installation: Head mounted(standard Universal helmet interface)
control mode: OFF/ON/AUTO/IR
Power consumption: <0.15W
Battery life: ≥60hrs
magnification: 1X±5％
FOV: 40°±2°
EPD: 7 mm
IIT: Gen2+/3 P43/P45
Lens system: F1.2 / 25mm
Resolution: 57-64lp/mm
Optical distortion: 3% Max
coating: Multi-layer broadband coating
Focal Range: 250mm-∞
Eye relief: 25mm
Diopter: -4 - +2SD
EPD adjustment range 54-80mm
IP Rating IP65
Dimension 112 x 105 x 86mm
Weight 490G(battery included)
Operating Temp -40 - +50℃
■Video Link_ Filmed by cell phone
Building Apperance：
https://v.douyin.com/ieWmm7rR/
Outdoor forest white phosphorus tube imaging:
https://v.douyin.com/ieWmaNAg/
