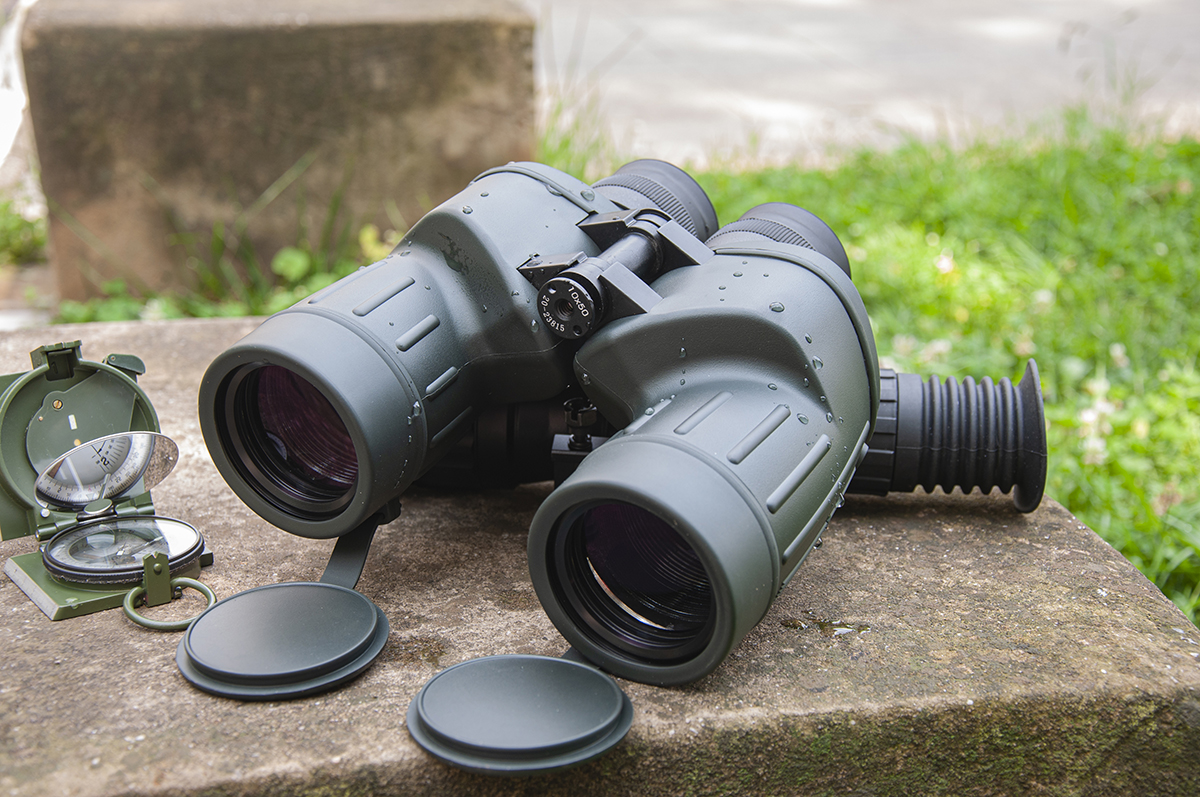

YJM98_10x50 Military Binoculars

Specification: 10X50

Brand:  Outlook

Magnification: factor 10 ×

Entrance pupil diameter: 50mm

Exit pupil diameter:  φ 5mm

Exit pupil distance:  20.8mm

Field of view:  (107m/1000m) 6.5 °

The closest focusing distance: 12.5m

Relative brightness : 27

Twilight index:  22.8

Resolution:  ≤ 5.2 ″

Prism category:  Paul

Number of lens groups: 4 groups 7 pieces

Focusing system:  adjustment

Focusing lens: eyepiece

Left and right visual acuity adjustment range: >-5 to+5 SD

Range of eye distance adjustment:  56-74mm

Eye mask type:  flip down

Low light night vision: Yes

Mirror body material:  magnesium alloy

Waterproof structure:  with a depth of 1.5m and a water depth of 30min

Nitrogen filling tank: Yes

Product size:  220x70x190mm

Working temperature:  -43 ℃~+55 ℃

Storage temperature:  -55 ℃~+70 ℃

Color box size:  250x130x260mm

Single weight/gross weight net (kg) :  1.6/2.6

The YJM98 7X50 and 10X50 military telescopes, as military telescopes produced for the military, have unique modular prism design and advanced sealing and moisture-proof technology in China.

The YJM98-1050 binocular telescope is a binocular observation device used for observing, searching, and monitoring distant objects and targets during the day. It can roughly measure the direction angle, elevation angle, and distance of the target using the dividing plate inside the telescope. The 98 telescope fully meets the requirements of the US military standard (MIL-STD-810) and can be used 24/7. It adopts a comprehensive precision multi-layer coating, with a transmittance of up to 82.3% and sharp imaging, making the 98 military telescope significantly better than similar telescopes at home and abroad in terms of observation brightness, image quality, and object color authenticity. It has excellent performance such as wide field of view, large exit pupil diameter, and long exit pupil distance. The 98 military telescope can be used in low light environments such as dusk and dawn, as well as wearing a gas mask. Even with glasses, the target can be observed clearly and comfortably. It is protected by high-purity nitrogen gas, professionally waterproof, and has high sealing performance. The interior can withstand an overpressure of 35Kpa, The Type 98 military telescope can be immersed in water up to a depth of 1.5m and can meet the needs of all-weather combat. Its working temperature range is -43 ℃~+55 ℃, and the Type 98 military telescope can meet the needs of combat in different geographical locations. The Type 98 telescope adopts an all metal structure, which is sturdy and durable; Rubber armor, shock-absorbing and anti slip design, with strong resistance to bumps and vibrations, can withstand the impact of more than 20 gravitational accelerations, fully suitable for field environments. The 98 telescope has advanced curve division inside, which can directly measure the distance and orientation of the target. It adopts modular design, making it have good universal maintenance performance and is currently widely used in the military.

Attachment: Leather box, lens cleaning cloth, objective lens cover, eyepiece cover, instruction manual, certificate of conformity, warranty card, color box
